SLIDING DOOR SYSTEM

Loading...

Description

A sliding door is ideal as a connection between the room or conservatory and the outside world and offers comfortable access to the balcony, terrace or garden.

It ensures particularly good contact with the environment and does not take up any space in the room when it is open, which further increases user comfort. The MB-59HS system offers many possibilities for the construction of sliding doors and is at the same time optimized for the construction and dimensions of sashes and frames. Doors made from elements of this system are characterized by particularly good thermal insulation, sound insulation and water and air tightness. The system therefore meets all energy-saving and environmental requirements.

The profiles of the MB-59HS system are available in two construction variants ST and HI, which differ from each other in terms of thermal insulation. Among the available profiles are frames with two and three rails and wings that are suitable for the two different heights of the driving mechanisms. The extensive glazing options make it possible to use double or triple glazing, including acoustic glass or burglary-resistant glass. Due to its properties, the system can be used in different types of buildings, both in private buildings and in hotels or apartment buildings.

Benefits of the MB-59HS system:

  • door leaves of large dimensions are possible that significantly exceed the standard values: height up to 2.8 m, width up to 3.3 m, maximum leaf weight up to 300 kg;

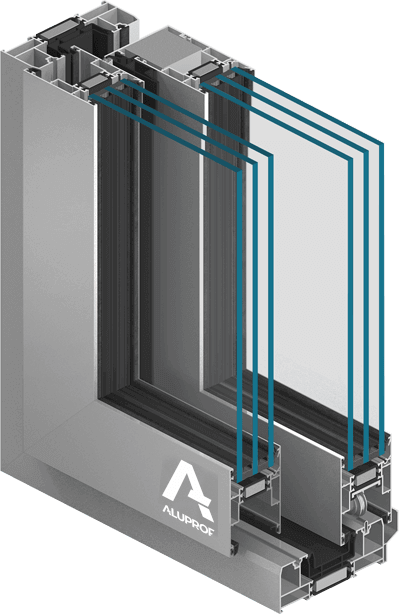

  • slim and strong profiles in a three-chamber construction, with a central insulating chamber with wide warm spacers;
  • frames with 2 or 3 rails, allowing doors with a wide door opening;
  • wide range of glass thicknesses (up to 42 mm) for mounting in the door frames, always allowing glazing of the desired parameters;
  • fixed parts with glass mounted directly in the frame (aesthetic and economic);
  • relatively low heat transfer coefficient Uf of the frames, thanks to the wide thermal spacers, polyethylene inserts and plastic chambers mounted in the thermal insulation zones;
  • high water and air tightness thanks to specially formed seals and fittings that allow the door leaf to fall into the frame during the final closing phase;
  • most of the sliding door hardware available on the market can be mounted on it;
  • version with low threshold available, making it easier to use the door especially for the elderly and disabled;
  • possibility to mount the door individually or as part of larger constructions: facade systems with posts and crossbars or conservatories;
  • maximally simplified technology for carrying out the construction, saving time and costs when creating the doors;
  • compatible with other Aluprof systems – possibility to use common components.
TECHNICAL PARAMETERS OF MB-59HS DOORS:
  • Air permeability: class 3, EN 12207
  • Wind resistance class: up to class C3, EN 12210
  • Thermal insulation: U f from 1.8 W/(m 2 K)
